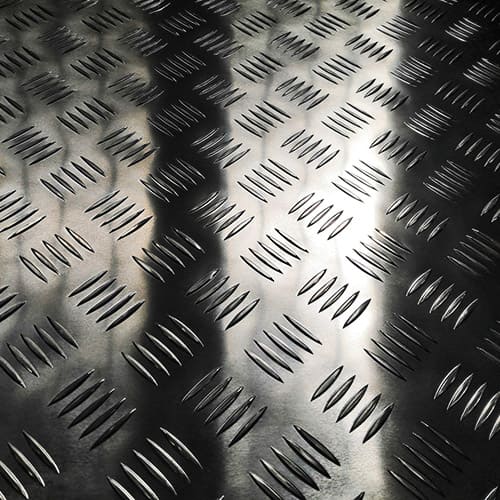

5754 ورقة لوحة المدقق الألومنيوم: دليل رسمي من شركة Huawei Aluminium
5754 ورقة لوحة المدقق الألومنيوم, مع سطحه المميز المنقوش بالألماس, يمزج مقاومة التآكل, القابلية للتشكيل, والأداء العملي المضاد للانزلاق.
توفر هذه المقالة نظرة متعمقة على 5754 صفائح لوحة المدقق الألومنيوم, نسج المعادن معا, تصنيع, التطبيقات, وتوجيهات الشراء.
While we spotlight the material, we also introduce Huawei Aluminum, a leading supplier known for reliability, consistent quality, and extensive capabilities in producing 5754 Aluminum Checker Plate Sheet for global customers.
The content below is structured for engineers, purchasing professionals, fabricators, and designers who want practical, actionable insights.
You’ll find technical data, practical comparisons, procurement tips, and real-world considerations to help you select, assess, and use 5754 Aluminum Checker Plate Sheet effectively.
5754 ورقة لوحة المدقق الألومنيوم: Core Attributes and Market Position
5754 Aluminum Checker Plate Sheet is a member of the 5xxx alloy family (آل ملغ من).
The magnesium content provides good corrosion resistance, خاصة في البيئات البحرية, while manganese enhances grain structure and overall toughness.
The checker plate format—the familiar diamond or checker pattern on the surface—adds anti-slip properties, making it a versatile option for flooring, منحدرات, الممرات, and industrial surfaces, as well as decorative applications where a rugged aesthetic is desirable.
This section outlines the core attributes that define 5754 Aluminum Checker Plate Sheet and why it remains a popular choice across marine, مواصلات, and industrial applications.
It also positions Huawei Aluminum as a supplier capable of delivering high-quality 5754 checker plate sheets to varying specifications, ينتهي, and temper requirements.
Key takeaways
– عائلة سبائك: 5xxx (آل ملغ من) with excellent corrosion resistance, particularly in saline or humidity-prone environments.
– نمط السطح: Diamond/checker plate that provides anti-slip properties without relying on coatings.
– Typical temper range for checker plate use: ا (صلب) to H32 (moderately tempered) and H34, H36, or equivalent stabilized tempers for increased strength.
– الاستخدامات الشائعة: Marine decking, industrial flooring and stair treads, vehicle and trailer beds, لهجات معمارية, and decorative metalwork.
What Is a Checker Plate, and Why Choose Aluminum 5754?
Checker or diamond plate refers to the surface texture intentionally pressed or rolled into the sheet to create small ridges or patterns.
In aluminum, this texture serves two main purposes:
– أداء مضاد للانزلاق: The raised pattern provides traction under wet or oily conditions, reducing the risk of slips.
– Aesthetic and functional versatility: The pattern is durable, easy to maintain, and suitable for both industrial and architectural applications.
5754 checker plate combines the pattern with corrosion resistance and formability, making it especially attractive in environments where corrosive factors (رذاذ الملح, رطوبة) are present and where long service life matters.

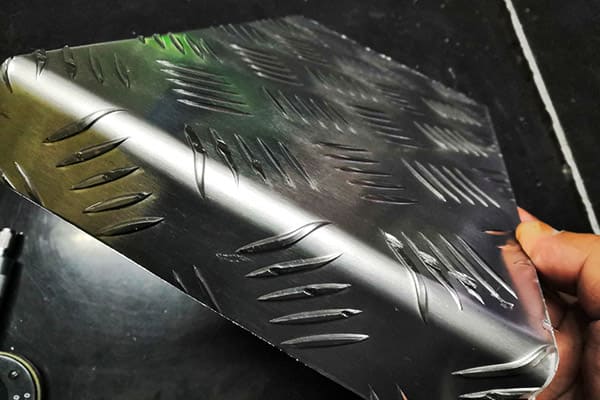

Bending Test of 5754 Aluminum Checker PlateSurface pattern and performance characteristics
| مميزة | وصف |
|---|
| Pattern type | Diamond/checker plate pattern |
| أداء مضاد للانزلاق | High in wet or oily conditions due to raised texture |
| خيارات الانتهاء من السطح | Natural anodized, نحى, or mill finish; can be coated for corrosion resistance if needed |
| Impact on weight | Similar to other 5xxx plates of equivalent thickness; pattern adds minimal weight deviation |
| صيانة | سهل التنظيف; resistant to staining and corrosion in compatible environments |
5754 Aluminum Alloy: تعبير, حِدّة, and Processing
Understanding the alloy composition, temper designations, and typical processing routes helps you select the right 5754 Aluminum Checker Plate Sheet for your project.
ال 5754 alloy is optimized for corrosion resistance and good workability, which makes it a practical choice for fabrications that will face moisture, ملح, or humidity.
Notes on composition and temper
– Main alloying elements: المغنيسيوم (ملغ) and Manganese (مينيسوتا) with Aluminum as the base.
– Typical effect of Mg: Increases corrosion resistance and ductility; enhances strength when tempered.
– Role of Mn: Improves strength and contributes to favorable grain structure, improving toughness and fatigue resistance.
Temper options commonly used for 5754 checker plate sheets include
– ا (Annealed): Soft, highly formable, easy to work with.
– H32 (Stable after strain-hardening): Higher strength with good formability; retains most of the ductility.
– H34, H36 (Further strain-hardening): قوة أعلى, reduced elongation; suitable for demanding structural or anti-slip applications.
– Other tempers may be specified by the supplier based on customer requirements (على سبيل المثال., T6 is less common for 5754 but may be requested for certain projects).
Key practical implications
– Anti-slip performance is typically maintained across temper ranges; the checker pattern remains effective regardless of temper.
– قابلية اللحام: 5xxx series generally weld well with appropriate techniques (على سبيل المثال., أنا/أنت), though heat input and post-weld treatment are important considerations to preserve corrosion resistance and avoid distortion.
Approximate composition ranges for 5754 سبيكة
| عنصر | نطاق نموذجي | Purpose |
|---|
| المغنيسيوم (ملغ) | ~3.0% (تقريبي) | Primary alloying element; boosts corrosion resistance and formability. |
| المنغنيز (مينيسوتا) | ~0.2–0.6% | Improves grain structure and toughness. |
| السيليكون (و) | ≤0.4% | Generally kept low to preserve ductility. |
| حديد (الحديد) | ≤0.4% | Within standard acceptable limits; can affect properties if high. |
| عناصر أخرى | Trace | Balance to aluminum; small impurities. |
Durability considerations:
– 5754 shows strong corrosion resistance in marine atmospheres, particularly when the surface is free of defects or residues that could initiate corrosion.
– The combination of patterning and alloy properties yields a practical balance between safety, wear resistance, وطول العمر.
Mechanical Properties and Corrosion Behavior
While the exact properties depend on temper, سماكة, والتسامح التصنيع, 5754 Aluminum Checker Plate Sheet generally offers a favorable balance between strength, ليونة, ومقاومة التآكل.
Below are typical ranges and qualitative assessments you can use when comparing options or planning designs.
Typical mechanical properties by temper
| ملكية | نطاق نموذجي (5754 in common tempers) | ملحوظات |
|---|
| كثافة | عن 2.70 g/cm3 | Consistent with aluminum alloys. |
| قوة الشد (Ultimate) | 230–320 MPa | Higher in tempered conditions; varies with thickness and heat treatment. |
| قوة العائد (0.2% offset) | 120–260 MPa | Higher in H32/H34 temper; lower in O temper. |
| استطالة عند الاستراحة | 5–25% | Higher in softer tempers; decreases as temper increases. |
| صلابة (Rockwell) | 60–90 HRB (تقريبا.) | Increases with temper; check supplier data for exact values. |
| معامل المرونة | ~69 GPa | Typical for aluminum alloys. |
| الموصلية الحرارية | ~120–180 W/m·K | Useful for heat dissipation considerations. |
| الموصلية الكهربائية | ~40–60% IACS | معتدل; not as high as pure aluminum. |
Corrosion behavior
– Excellent resistance to corrosion in seawater and marine atmospheres, particularly when left unpainted and free of surface defects.
– Magnesium content enhances passivation and reduces the rate of corrosion in typical atmospheric exposures.
– Surface treatments or coatings can boost performance in highly corrosive environments or where there is chemical exposure beyond seawater.
Applications of this corrosion performance include
– Marine decks and walkways
– Exterior trim and cladding in harsh environments
– Vehicle and trailer flooring in industrial settings
– Architectural accents in coastal regions
Manufacturing and Fabrication: كيف 5754 Checker Plate Sheets Are Produced
The production process for 5754 Aluminum Checker Plate Sheet typically includes the following steps:
– Billet preparation and hot rolling: Alloy billets are heated and rolled to reduce thickness, forming the base sheet.
– Cold rolling (if required): Additional passes to achieve the desired thickness and surface specification.
– Patterning: The checker pattern is imparted during rolling or a subsequent embossing operation to create the raised surface.
– Annealing or stabilization: Depending on the final temper, the sheet may be annealed (ا) or strain-hardened (H temper) and stabilized to the target mechanical properties.
– Slitting and finishing: The sheet is cut to required widths and lengths and finished to meet surface quality standards.
Quality control at Huawei Aluminum, and similar high-quality suppliers, يشمل:
– In-line inspection for surface defects, التحمل الأبعاد, and pattern uniformity
– Chemical composition verification via spectrometry
– Mechanical testing to verify yield strength, قوة الشد, and elongation for the specified temper
– اختبار غير مدمر (NDT) on critical lots to ensure integrity
Practical tips for fabrication:
– Anti-slip checker patterns maintain structural integrity when cut or formed; avoid aggressive tearing that could crack the raised surface.
– Welding considerations: Ensure proper heat control to prevent distortion and maintain corrosion resistance post-weld.
– Machining: الألومنيوم 5754 responds well to milling and punching; use proper speeds and feeds to preserve the checker pattern and avoid burrs.
Process considerations for 5754 ورقة لوحة المدقق الألومنيوم
| Process stage | Key considerations |
|---|
| قطع | Use sharp tooling; consider protective film to reduce scratching of the pattern. |
| Forming | Moderate forming loads; avoid excessive thinning at corners to prevent distortion of the checker pattern. |
| اللحام | Use appropriate filler if necessary; monitor heat input to minimize warping. |
| التشطيب | التشطيب السطحي (brush, polish) may affect anti-slip texture; plan around functional needs and aesthetics. |
| Coating | If coating, select compatible primers and topcoats to ensure adhesion and corrosion protection. |
Applications and Industry Adoption
5754 Aluminum Checker Plate Sheet blends mechanical performance with anti-slip functionality, making it suitable for a broad range of applications.
Below are representative sectors and typical use cases, along with practical notes on performance expectations.
Applications by sector
– البحرية والبحرية: Decking, anti-slip walkways, الممرات, and interior trim where corrosion resistance and durability are critical.
– النقل والخدمات اللوجستية: Truck bed floors, أرضيات مقطورة, أرصفة التحميل, and ramps. Anti-slip pattern reduces risk during loading and unloading operations.
– Industrial facilities: Plant flooring, الميزانين, درج معالجته, and safety platforms in factories and warehouses.
– Architectural and interior design: Decorative wall panels, السقوف, and exterior cladding where a rugged industrial look is desired.
– Oil and gas: Offshore platforms and refineries where corrosion resistance is essential and anti-slip surfaces add safety.
Case study snapshots
– A shipyard replaced painted, non-slip steel decks with 5754 checker plate sheets to reduce maintenance and improve corrosion resistance in a salt-air environment.
– A heavy-duty trailer manufacturer specified 5754 checker plate for trailer floors to balance slip resistance and weight, reducing the need for additional anti-slip coatings.
– An industrial facility in a coastal city used 5754 checker plates for stair treads and landing platforms, achieving lower maintenance costs over time due to durable surface texture and corrosion resistance.
Applications and corresponding properties
| طلب | Key requirements | كيف 5754 checker plate meets them |
|---|
| Anti-slip flooring | Durable surface texture; المقاومة للتآكل | Diamond pattern remains intact; magnesium content provides corrosion resistance in marine environments. |
| Marine decking | Salt spray resistance; wear resistance | Excellent corrosion resistance in seawater; robust pattern provides traction. |
| Vehicle/trailer floors | Load-bearing capability; easy maintenance | Good strength-to-weight ratio; pattern reduces slippage; resistant to abrasion and corrosion. |
| Architectural accents | Aesthetic with durable finish | Industrial look with durable surface; easy maintenance. |
| Industrial platforms | Safety, reliability, طول العمر | Checker pattern provides safety; قوي, corrosion-resistant sheet. |
تسليط الضوء على الموردين: Huawei Aluminum — A Reliable Partner for 5754 ورقة لوحة المدقق الألومنيوم
هواوي للألمنيوم is a prominent supplier known for providing a comprehensive range of aluminum products, مشتمل 5754 ورقة لوحة المدقق الألومنيوم, with a focus on consistent quality, التخصيص, and reliable delivery.
This section introduces Huawei Aluminum’s capabilities, certifications, and value proposition for customers seeking 5754 checker plates.
Supplier profile highlights
– مجموعة المنتجات: A broad portfolio of 5754 alloys with checker plate textures, in multiple temper options, سمك, والتشطيبات السطحية.
– إدارة الجودة: ISO 9001-based quality management systems, rigorous in-house testing, and third-party certifications to ensure consistency and traceability.
– Production capacity: Large-scale rolling and embossing facilities enabling efficient production of checker plate products in varied thicknesses and widths.
– التخصيص: Ability to tailor product specs, such as temper, عمق النمط, edge finishing, and surface treatments to meet client requirements.
– دعم العملاء: Pre-sales consultation to help select the right alloy and temper, followed by post-purchase technical support for fabrication and maintenance.
لماذا هواوي الألومنيوم ل 5754 ورقة لوحة المدقق الألومنيوم?
– Proven track record: Longstanding relationships with global customers across maritime, صناعي, and architectural sectors.
– الخدمات اللوجستية العالمية: Experience in exporting aluminum products to multiple regions with reliable packaging and on-time delivery.
– Compliance and traceability: Materials traceability, material certifications, and compliance with regional regulations.
Note on procurement considerations
– Request a material test report (استعراض منتصف المدة) or certificate of conformity with 5754 checker plate sheets, including chemical composition, الخصائص الميكانيكية (tensile, أَثْمَر, استطالة), temper designation, والانتهاء من السطح.
– Specify the checker plate pattern depth and pitch if you have precise anti-slip or traction requirements.
– Consider coatings or protective finishes if the service environment introduces additional corrosion risk (على سبيل المثال., coastal or chemical exposure).
How to Choose the Right 5754 ورقة لوحة المدقق الألومنيوم
Selecting the right 5754 Aluminum Checker Plate Sheet requires balancing mechanical properties, المقاومة للتآكل, أداء مضاد للانزلاق, والتكلفة.
Here is a practical guide to streamline your decision-making process.
Checklist for selecting 5754 لوحة المدقق:
– بيئة: Marine exposure, رطوبة, التعرض الكيميائي, or dry indoor conditions. الألومنيوم 5754 performs well in moisture-prone environments; consider protective coatings if exposure is aggressive.
– حِدّة: Determine whether you need soft formability (ا) or higher strength (H32/H34/H36). For anti-slip flooring that requires regular cutting and shaping, H32 offers a good compromise; for structural applications, H34/H36 provide higher strength.
– Pattern depth and pitch: Decide on pattern depth (how pronounced) and the diamond pattern size to match traction requirements and aesthetic preferences.
– Thickness and width: Align with load requirements and installation constraints; thicker sheets offer greater bending resistance and structural rigidity but add weight and cost.
– Surface finish: Mill finish versus brushed or anodized; consider corrosion protection and aesthetics.
– Fabrication considerations: Welding compatibility, cutting approach, and post-processing needs.
– Certifications and supplier reliability: Request MTRs, product certifications, and evidence of quality systems (ايزو 9001:2015, إلخ.). Evaluate lead times, الحد الأدنى لكميات الطلب, and after-sales support.
Comparison by material groups helps differentiate 5754 against similar alloys used for checker plates.
5754 Aluminum Checker Plate vs. 5052 و 5083
| سبيكة | مقاومة التآكل | القابلية للتشكيل | قوة (نسبي) | قابلية اللحام | تطبيقات نموذجية |
|---|
| 5754 | ممتاز في البيئات البحرية | جيد جدًا; good elongation | معتدل; higher than 5052 in tempered forms | Good with appropriate technique | Marine decking, الأرضيات, لهجات معمارية, anti-slip surfaces |
| 5052 | Excellent overall corrosion; very good formability | أرقى; widely formable | معتدل; generally similar to 5754 but varies with temper | جيد; widely welded | خزانات الوقود, chemical equipment, marine and architectural components |
| 5083 | مقاومة فائقة للتآكل; very high strength in thicker sections | جيد; some work hardening issues at high strains | عالي; stronger than 5754 in many temper states | Good to excellent; strong weldability with proper technique | Pressure vessels, hulls of ships, structural components in harsh environments |
ملحوظات:
– All values depend on temper and thickness; consult supplier data sheets for exact figures.
– 5754 is often chosen for anti-slip checker plates in marine and industrial applications due to its corrosion resistance and machinability.
– When very high strength is required, 5083 and other members of the 5xxx family might be preferred, but they may come with tradeoffs in formability or cost.
تاكيد الجودة, Testing, and Certifications
When procuring 5754 ورقة لوحة المدقق الألومنيوم, robust quality assurance is essential.
Huawei Aluminum and other reputable suppliers typically provide a comprehensive set of quality documents and testing results, مشتمل:
– Chemical composition analysis (spectrometry) to confirm alloy identity and compliance with 5754 specification.
– Mechanical test reports: Tensile, قوة الخضوع, استطالة, and hardness for the specified temper and thickness.
– Surface quality inspection: Checks for defects, waviness, and pattern consistency on the checker surface.
– Coating and finish verification (إن أمكن): Documentation of surface treatments, الطلاءات, and adhesion properties.
– الشهادات: ايزو 9001, و, where applicable, third-party certifications such as SGS, BV, or TUV depending on customer requirements.
– إمكانية التتبع: Lot-level traceability from raw material to finished product.
Quality assurance workflows often include
– Incoming material inspection
– In-process checks during rolling, النقش, and finishing
– Final inspection before packaging and shipment
– Documentation packet including MTR (Material Test Report) and certificate of conformity
الأسئلة الشائعة حول 5754 ورقة لوحة المدقق الألومنيوم
س1: What does 5754 mean in the context of Aluminum Checker Plate?
– أ: 5754 refers to the alloy designation in the Aluminum Association system. It is a 5xxx series alloy (آل ملغ من) known for good corrosion resistance and formability, especially suitable for marine environments. The checker plate refers to the surface pattern that provides anti-slip properties.
Q2: كيف 5754 compare to 5052 و 5083 في مقاومة التآكل?
– أ: In many service environments, 5754 offers excellent corrosion resistance, especially in seawater and humid environments. 5052 also resists corrosion well and is highly formable, بينما 5083 has superior strength and excellent corrosion resistance in more demanding environments. The best choice depends on the specific application, including load requirements and environmental exposure.
س3: What temperatures are typical for 5754 checker plate sheets?
– أ: Common tempers include O (صلب) for maximum formability, and H32/H34/H36 for higher strength. The checker plate surface remains functional across these tempers, with pattern integrity preserved. Temperature ranges during fabrication should be controlled to avoid unwanted distortions.
س 4: هل يمكنني اللحام 5754 checker plate sheets?
– أ: نعم, 5754 welds well with proper welding technique (أنا/أنت) and appropriate filler materials. The welding process should consider heat input to prevent distortion and to maintain corrosion resistance around the welds.
س5: ما هي مدة الخدمة النموذجية ل 5754 checker plate in coastal environments?
– أ: With proper maintenance and regular cleaning, 5754 checker plate can offer long service life in coastal environments due to its corrosion resistance. The exact lifespan depends on the level of salinity, رطوبة, and maintenance schedule.
خاتمة
5754 Aluminum Checker Plate Sheet offers a balanced set of properties that meet the needs of diverse industries, especially where corrosion resistance and anti-slip surfaces matter.
The alloy’s 5xxx-series chemistry provides robust performance in marine and humid environments, while the checker plate texture adds safety and practicality for flooring, منحدرات, والممرات.
With reliable suppliers such as Huawei Aluminum, buyers can access consistent quality, خيارات التخصيص, and global logistics to fit project timelines and budgets.
If you are evaluating 5754 Aluminum Checker Plate Sheet for a new project, consider the factors outlined in this guide: بيئة, required strength, desired pattern, سماكة, والمزاج.
Engage with Huawei Aluminum early in the design phase to align on specifications, certifications, and delivery schedules.
The result should be a reliable material solution that performs as expected, meets safety standards, and delivers long-term value.
For further inquiries, or to receive a tailored quote for 5754 ورقة لوحة المدقق الألومنيوم, contact Huawei Aluminum’s technical sales team.
They can provide data sheets, استعراضات منتصف المدة, and temper-specific recommendations to help you finalize your design and procurement plans.
مشاركة مع PDF: تحميل
