5 Bar Aluminum Diamond Plate for Trailers: A Comprehensive Guide

In the heavy-duty world of trailers, the surface you stand on and strap things to matters as much as the chassis itself. The 5 Bar Aluminum Diamond Plate for Trailers blends rugged durability with slip resistance, light weight, and corrosion resistance—making it a popular choice for everything from utility trailers to flatbeds and cargo haulers.

This guide dives into the essentials of 5 bar aluminum diamond plate, explains why it’s favored for trailer applications, compares common alloys and thicknesses, and provides practical buying, installation, maintenance, and sourcing guidance.

It also introduces Huawei Aluminum, a notable supplier in this space, helping you understand who you can rely on for quality plate and sheet.

What is 5 Bar Aluminum Diamond Plate?

5 Bar Aluminum Diamond Plate is a type of tread plate featuring five raised bars in an alternating pattern across the surface.

The raised profiles provide enhanced traction, particularly when surfaces are wet or icy, which is crucial for loading, unloading, and walking on trailer beds.

The underlying sheet is typically a flat aluminum alloy that has been rolled and then formed to create the textured surface.

The combination of a flat base with a hard-wearing, slip-resistant top makes 5 Bar Aluminum Diamond Plate an attractive option for trailers that routinely encounter heavy loads, varying weather, and rough handling.

Key characteristics include:
– High slip resistance thanks to the distinctive five-bar tread pattern
– Lightweight profile relative to steel plate, contributing to better payload capacity and fuel efficiency
– Corrosion resistance inherent to aluminum, particularly with appropriate alloy selections and protective coatings
– Good formability for fabrication into sidewalls, fender skirts, and bed panels

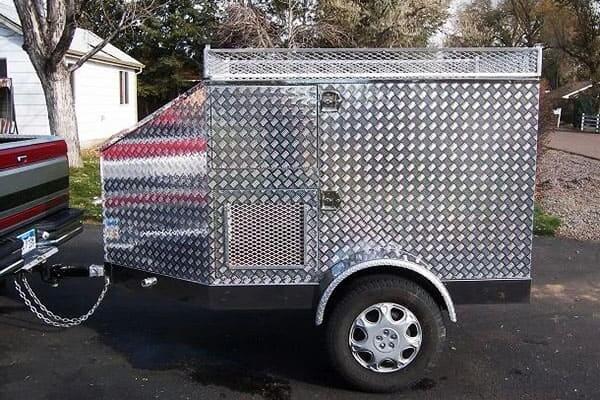

In the trailer industry, 5 Bar Aluminum Diamond Plate is commonly specified for:
– Trailer beds and decks
– Wheel wells and fenders
– Stair treads and entry ramps on utility trailers
– Exterior trim panels that also require anti-slip surfaces

Why Trailers Benefit from 5 Bar Diamond Plate

There are several reasons this plate style is widely adopted for trailers:
– Traction and safety: The 5-bar pattern provides grip under foot or along the underside of items, reducing slip and slide risks during loading, unloading, and weather exposure.
– Weight savings: Aluminum is significantly lighter than steel. Replacing steel tread plates with aluminum can reduce overall trailer weight, improving payload capacity and fuel efficiency.
– Corrosion resistance: Aluminum oxides naturally, and with proper alloys, resists corrosion. This longevity is especially valuable for trailers used in harsh climates or maritime environments.
– Aesthetics and durability: The rugged, industrial look of diamond plate plus the resilience of aluminum makes it a practical choice for both service and appearance.
– Easy maintenance: Aluminum surfaces can be cleaned with mild detergents, and the pattern helps conceal minor scuffs and scratches from regular work.

Material Options: Alloys, Thicknesses, and Finishes

The performance of 5 Bar Aluminum Diamond Plate for Trailers depends heavily on alloy choice, temper, and thickness.

The “5 Bar” tread plate is a form of aluminum sheet or plate typically produced in common alloys used for structural and surface applications.

The most prevalent alloys for trailer use include 5052, 5083, 5086, and sometimes 6061, each with its own trade-offs in strength, corrosion resistance, and weldability.

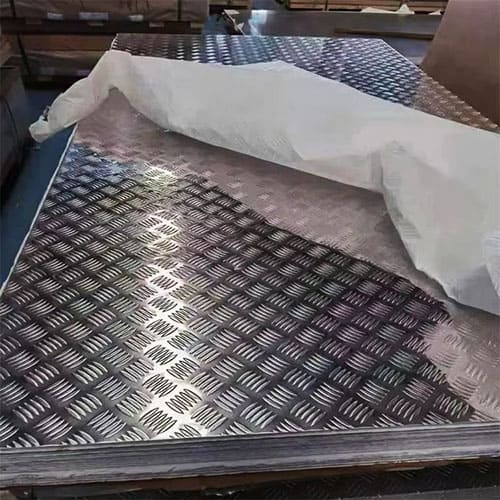

• 5052-H32: A typical marine-grade alloy offering excellent corrosion resistance and good formability. It’s a common choice for trailer decking and side panels where weight savings and durability are essential. It welds well with conventional methods and holds up under repeated flexing.
• 5083-H116 / 5083-H321: Another strong marine alloy known for outstanding corrosion resistance, especially in saltwater environments. It has excellent strength-to-weight ratios and performs well in structural applications that see heavy use.
• 5086-H32: Similar to 5083 in corrosion resistance, with strong weldability and good overall performance for trailers subject to moisture, salt spray, or humid conditions.
• 6061-T6: A widely used structural alloy with good strength, machinability, and formability. While it offers robust performance, its corrosion resistance is typically lower than 5xxx-series alloys, so it’s chosen for specific structural needs rather than exterior deck surfaces in harsh environments.

The choice of thickness is a function of expected loads, mounting requirements, and the trailer’s design.

Common thicknesses for trailer 5 Bar diamond plate range from 0.063 inches (1.6 mm) to 0.125 inches (3.2 mm). More robust decks may use thicker plates, especially for heavy-duty service or frequent impact loading.

Widths often span from 36 inches to 60 inches for deck sections and can be trimmed or formed for fenders, steps, and accessories.

The length is typically determined by the trailer’s dimensions, with sheets cut and formed to fit specific bed layouts.

Alloy options at a glance

Note: The exact temper designations and availability may vary by supplier and mill.

Always consult the plate datasheet for precise mechanical properties, tolerances, and finishing options.

Thickness, Width, and Forming Considerations

• Thickness: Light-duty trailer decks may use 0.063″ to 0.090″ plates, while heavy-duty decks may employ 0.125″ plates or thicker. Tolerances for trailer decking must account for fastener penetrations, edge trimming, and mounting hardware.
• Width: Standard widths are 36″, 48″, 60″, or 72″ (and wider in specialized applications). Wider sheets reduce the number of seams but may require field cutting or conveyor-grade handling during installation.
• Length: Sheets are typically supplied in standard lengths (8′, 10′, 12′, etc.) and trimmed to fit the trailer. If decking spans large spans, attention must be paid to potential flexing under heavy loads.
• Pattern depth: The typical 5-bar tread depth is designed to provide traction without excessively rough edges that could catch clothing or equipment. The depth is a design factor in slip resistance and wear.
• Finishes: Mill finishes are common; some trailers may opt for brushed or satin finishes for aesthetic or cleaning requirements. Protective coatings, such as clear coats or anodizing (where applicable to aluminum), can improve longevity in harsh environments.

Manufacturing Process: How 5 Bar Aluminum Diamond Plate Is Made

The production of 5 Bar Aluminum Diamond Plate involves several stages:
1. Billet casting or slab preparation: The alloy is prepared to specification, with precise alloy composition and traceability.
2. Hot rolling or cold rolling: The sheet is rolled to the desired thickness. A diamond pattern is embossed during rolling or via a secondary stamping/embossing process.
3. Tempering and heat treatment: The plate is cooled and tempered to achieve the desired mechanical properties (strength, ductility, and hardness).
4. Surface finishing: The plate may receive surface treatments like cleaning, degreasing, and protective coatings as required.
5. Quality and testing: The final product undergoes dimensional checks, surface inspection, and, if requested, mechanical testing and certification.

The exact process can vary by mill and supplier, but the end result remains a sturdy, textured sheet suitable for deck surfaces and other applications on trailers.

Quality and Performance Metrics to Consider

When evaluating 5 Bar Aluminum Diamond Plate for Trailers, consider these essential performance metrics:
– Slip resistance: Measured by coefficient of friction (μ) under typical conditions (dry, wet). The raised pattern significantly improves traction.
– Strength and stiffness: Yield strength and ultimate tensile strength determine how well the deck resists bending and deformation under load.
– Weldability: Weldability is critical for on-site repairs and assembly. Alloys in the 5xxx family generally weld well with common methods (MIG/TIG).
– Corrosion resistance: Especially important for trailers used in humid or salty environments; 5xxx alloys excel here.
– Formability: Bending radii and forming capabilities matter for edge treatments and integrated components (racks, brackets).

Durability and Environmental Resistance

Aluminum’s natural oxide layer provides a level of corrosion protection, and the 5 Bar Diamond Plate benefits further from alloy selection and protective coatings.

Environmental resistance is influenced by:
– Salt spray exposure: 5xxx-series alloys show robust performance in marine environments; consider 5083 or 5086 for higher corrosion resistance.

– UV exposure: If used on exterior components, consider coatings that reduce UV degradation for aesthetic longevity.

– Temperature variation: Aluminum maintains good performance across a wide temperature range, though extreme cold can affect certain adhesions and finishes.

Maintenance and cleaning are straightforward: rinse with water to remove dirt and salt, wipe dry to prevent water spots, and use mild detergents.

For heavy grime or road salts, a gentle soap solution followed by a rinse is usually sufficient. Avoid harsh solvents that could degrade protective coatings or edge finishes.

A Practical Comparison: 5 Bar Diamond Plate vs Other Treads

To understand the value proposition, compare 5 Bar Aluminum Diamond Plate with common alternatives in the trailer context.

Trailing Plate Comparisons

Note: The exact performance depends on alloy, temper, and thickness.

Supplier Spotlight: Huawei Aluminum

If you’re considering sourcing 5 Bar Aluminum Diamond Plate for Trailers, Huawei Aluminum is a notable supplier to know.

Huawei Aluminum Co., Ltd. is an established aluminum producer with a portfolio that includes sheet and plate products for automotive, aerospace, marine, and trailer applications.

Key points about Huawei Aluminum:

– Range of alloys: Huawei typically offers 5052, 5083, 5086, and 6061 in sheet and plate formats, with thicknesses compatible for 5 Bar tread decking, fenders, and side panels.

– Production capabilities: Their mills are designed for high-volume production with tight tolerances to meet industry standards. This capacity supports consistent supply for trailer manufacturers and aftermarket distributors.

– Quality assurance: Huawei emphasizes quality control, often citing ISO 9001 certification, traceability programs, and material test documentation (MTRs) with each shipment. These practices help ensure that you receive material that meets your specified mechanical properties and chemical composition.

– Global reach: Huawei Aluminum has distribution networks and logistics capabilities that support both domestic and international customers. This is particularly valuable for manufacturers who need consistent lead times and reliable supply chains.

– Customization: The supplier can typically accommodate requests for specific alloy-by-temper combinations, thicknesses, and edge treatments, along with surface finishes and protective coatings when required for a given project.

In practice, engaging with Huawei Aluminum can streamline procurement for 5 Bar Aluminum Diamond Plate for Trailers, especially if you’re outfitting a fleet or undertaking large-scale production. When contacting Huawei or any supplier, consider requesting:

– Material test reports (MTRs) for the specific lot

– A sample sheet or panel to verify surface texture and pattern alignment

– Lead time estimates and minimum order quantities

– Availability of pre-cut panels or batch processing for consistent deck dimensions

– Warranty and post-sale support for manufacturing adjustments or replacements

FAQs About 5 Bar Aluminum Diamond Plate for Trailers

Q: What is the best alloy for a trailer deck in a salty marine environment?
A: For strong corrosion resistance in salty environments, 5083 or 5086 in appropriate temper (e.g., H116, H32, or H321) are often recommended. They provide excellent corrosion resistance along with good strength and formability.

Q: How thick should a 5 Bar Diamond Plate be for a heavy-duty trailer deck?
A: For heavy-duty decks, 0.125″ (3.2 mm) is a common choice, offering a robust deck with long service life. Lighter-duty deck applications may use 0.063″ to 0.090″. The final decision should consider load-bearing requirements, mounting hardware, and the trailer’s overall weight budget.

Q: Can I install 5 Bar Aluminum Diamond Plate without welding?
A: It is possible to install without welding using mechanical fasteners (rivets or self-tapping screws with washers) and appropriate sealants. Adhesives can supplement mechanical fastening in some designs, but most decks rely on fasteners for structural integrity due to trailer flex.

Q: What maintenance is required for 5 Bar Diamond Plate decks?
A: Routine cleaning with mild soap and water, periodic inspection of fasteners, and protection from harsh chemicals or abrasives. If you use protective coatings, follow the manufacturer’s guidelines for reapplication.

Q: How do I choose between 5 Bar and 3 Bar diamond plates?
A: The choice depends on traction requirements, aesthetics, and wear patterns. A 5 Bar plate provides higher traction in wet conditions and a robust appearance, while a 3 Bar plate still provides good traction with slightly simpler texture and potentially lower cost.

Conclusion

Choosing the right 5 Bar Aluminum Diamond Plate for Trailers requires balancing traction, durability, weight, corrosion resistance, and cost.

Alloy choice is a major driver of performance, with 5xxx-series alloys offering best-in-class corrosion resistance and solid weldability.

Thickness and width will shape your trailer’s payload capacity and long-term service life.

Sourcing from a trusted supplier like Huawei Aluminum can help ensure consistent material quality, traceability, and reliable delivery timelines, which are critical for manufacturing and fleet maintenance.

By combining the benefits of 5 Bar Aluminum Diamond Plate for Trailers with careful material selection, precise fabrication, and reliable sourcing, you can achieve a deck that not only looks professional but also delivers consistent performance across years of service.

Huawei Aluminum’s capabilities in alloy selection, manufacturing consistency, and quality control can support you through the sourcing phase—from query to shipment—delivering the materials your trailer program demands.
